UW- value 1.1
Veka Softline 82 entrance doors represent the technological pinnacle in the company's door system lineup. Designed specifically for energy-passive construction, this system features 82 mm installation depth and unique sash geometry. The main difference from junior series is the middle sealing circuit (MD), which reliably protects the rebate from drafts and freezing even in extreme climate conditions. This is the choice for those building a solid warm home who want to minimize heat loss through the entrance zone.
The system is based on a top Class "A" profile (3 mm wall) with powerful closed reinforcement and mandatory welded corner connectors. This construction withstands enormous weight loads, allowing use of heavy armored glass units or designer panels up to 52 mm thick. The Softline 82 door creates a sense of vault-like reliability: it is massive, quiet, and absolutely airtight, providing RC2/RC3 class security.
Article number
400.510.001
Technical Specifications
Details
High-End entrance system. Energy-efficient 82 mm system with three sealing circuits for passive houses.
Energy Efficiency
A++
Material
PVC Class A
Profile Depth
82 mm
Insulation
5-7 chambers
Glass Unit
Panel / up to 52mm
Thermal Protection (Uw)
≤ 1.0 W/(m²·K)
Sound Insulation
≈ 44 Rw(dB)
Design Parameters:
- System type: Energy-efficient entrance door (inward or outward opening).
- Installation depth: 82 mm (compatible with Softline 82 window system).
- Profile class: Class "A" (3 mm wall). Guarantees rigidity and reliable hardware mounting.
- Sealing: 3 sealing circuits (MD system). Middle circuit significantly improves air-tightness and sound insulation.
- Reinforcement: Reinforced closed steel reinforcement (square) with metal wall thickness from 2 mm.
- Corner connections: Use of special inserts ("hooves") that are welded or mechanically screwed, forming a rigid metal frame inside the sash.
- Threshold: Warm threshold with thermal break (20 mm height), compliant with barrier-free environment standards (DIN 18040).
Filling Options:
- Maximum thickness: up to 52 mm (ability to install 3-chamber units or thick warm sandwiches).
- Filling types: Energy-saving panels, glass units with laminated glass, decorative stained glass.
Specifications and Hardware:
- Door thermal transmittance (Ud): from 0.9 to 1.0 W/m²K (depending on panel, suitable for passive houses).
- Burglar resistance: RC2 / RC3 class.
- Hinges: Specialized hinges for heavy sashes (Dr. Hahn, Roto, Siegenia), surface-mounted or concealed.
3 Protection Circuits
MD System
52 mm Panel
Maximum Heat
Welded Corners
Monolithic Strength
Veka Softline 82 Door
High-End entrance system. Energy-efficient 82 mm system with three sealing circuits for passive houses.
Calculate Cost
Estimated manufacturing time 3-6 weeks.
Eligible for NextGen Subsidy -80%
Get up to €3,000 back on this window
Available Services
Free measurement and design More details
Delivery to installation site More details
Installation by our specialists More details
Buy by Phone
Call us Monday to Saturday, except holidays, from 8:00 AM to 10:00 PM. Sundays and holidays from 10:00 AM to 8:00 PM. Call
More Ideas and Inspiration

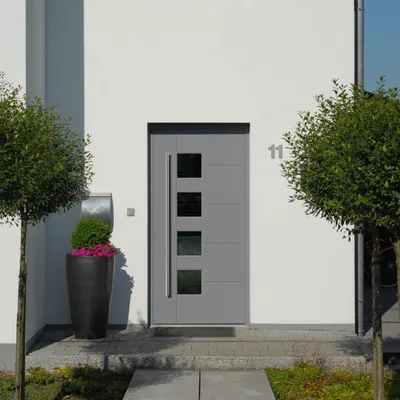

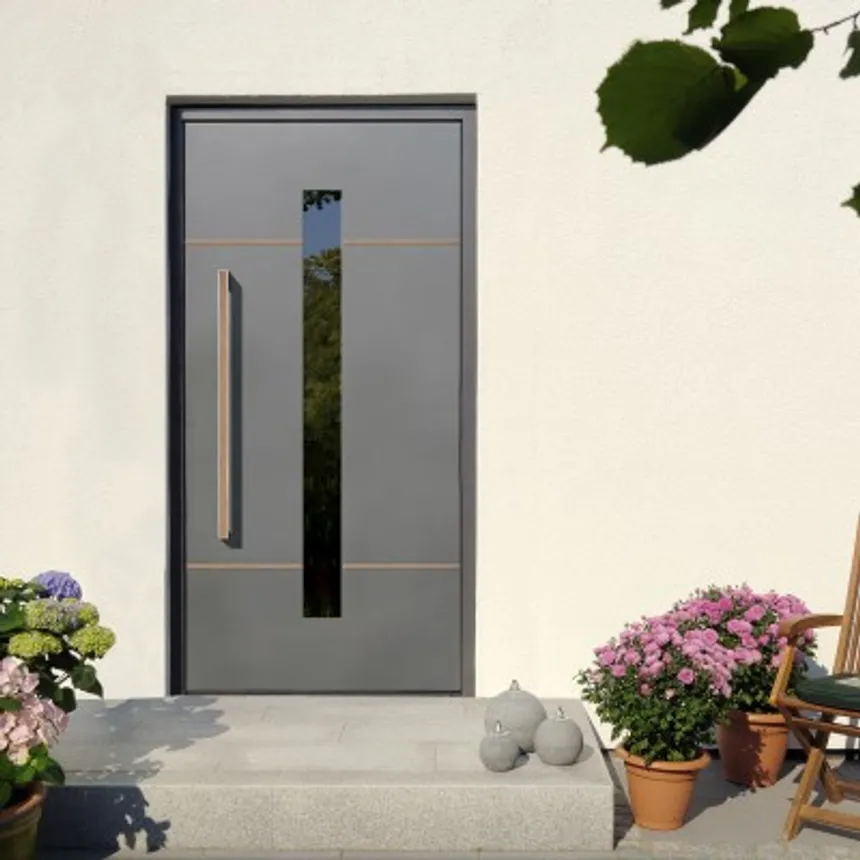

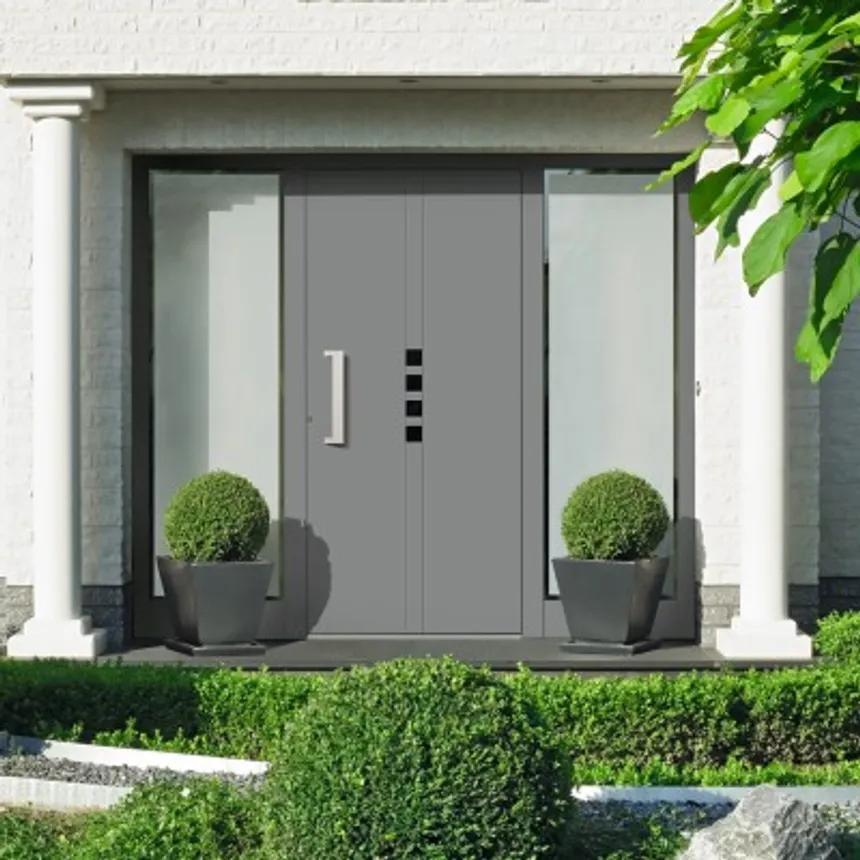

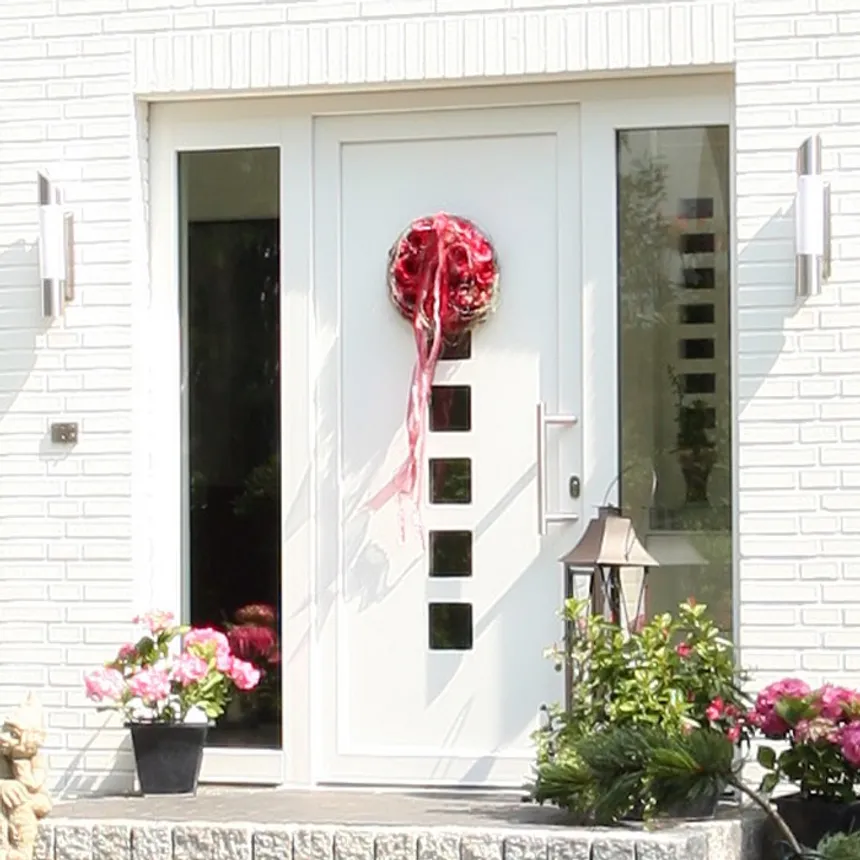

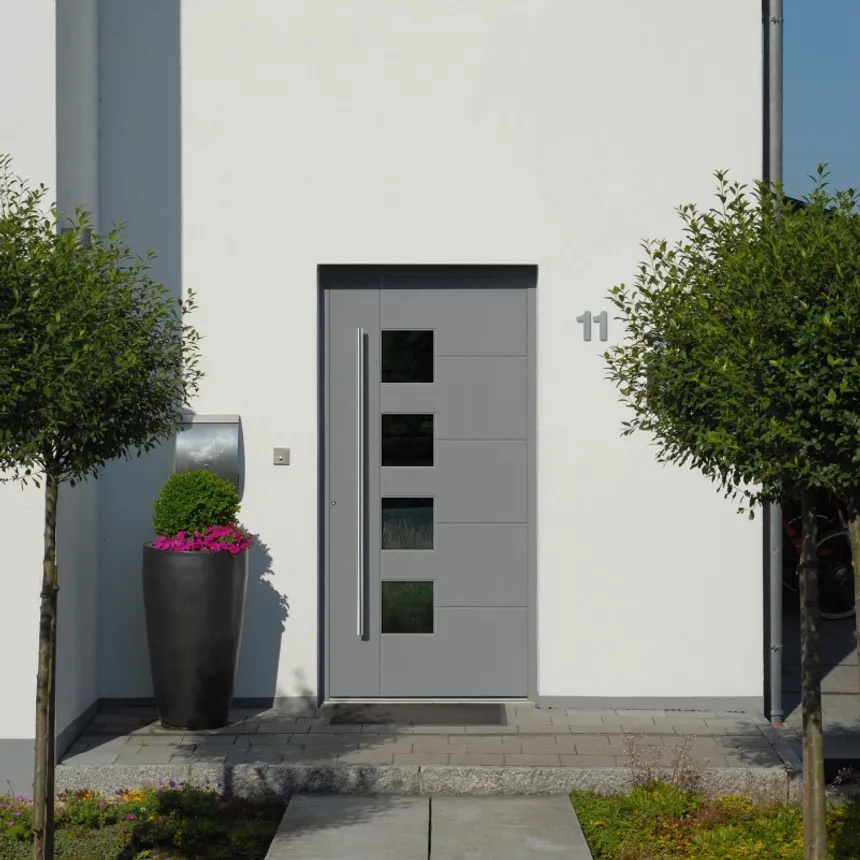

These are some examples of our work with Veka Softline 82 Door profile. All this inspiration is for you and only for you.
* - Photos provided by our partners and may differ from actual products.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
Financing Options
Enjoy your purchase now and pay for it in installments using our financing services.
More detailsDon't Forget to Add
Additional elements and accessories that will make your home even more comfortable
Mosquito Nets
Protect your home from insects, dust, and pollen, allowing you to enjoy fresh air even in the middle of summer.
Handles and Locking Elements
Quality hardware ensures ease of use and security for your windows and doors.
Lamination
Colorful home facades and the desire to decorate your home leads to growing demand for laminated windows every year.
Decorative Elements
Decorative strips and bars allow you to give your windows an individual style, emphasizing the architectural features of your home.
Compare with Similar Profiles
Alternative solutions from other manufacturers
UW- value 1.6
Veka Softline 70 Door
Reliable guardian of your home. Class "A" entrance system with reinforced reinforcement and special corner connectors.
Energy Efficiency
A
Material
PVC Class A
Profile Depth
70 mm
Insulation
5 chambers
Glass Unit
Panel / up to 42mm
Thermal Protection (Uw)
≤ 1.2 W/(m²·K)
Sound Insulation
≈ 40 Rw(dB)
UW- value 1.3
Veka Softline 76 Door
Next-generation entrance door. 76 mm Class "A" platform for those seeking maximum warmth and compatibility with thick designer panels.
Energy Efficiency
A+
Material
PVC Class A
Profile Depth
76 mm
Insulation
5 chambers
Glass Unit
Panel / up to 48mm
Thermal Protection (Ud)
≤ 1.1 W/(m²·K)
Sound Insulation
≈ 42 Rw(dB)
UW- value 1.2
Veka AluConnect Door
Entrance system revolution. Hybrid door with load-bearing aluminum body and warm PVC core. Aluminum design without cold bridges.
Energy Efficiency
A++
Material
Hybrid (Alu+PVC)
Profile Depth
82 mm
Insulation
PVC core / 3 circuits
Glass Unit
Panel / up to 58mm
Thermal Protection (Uw)
≤ 1.1 W/(m²·K)
Sound Insulation
≈ 43 Rw(dB)
UW- value 1.3
Rehau Euro-Design 70 Door
Optimal 70 mm PVC entrance door with the best price-to-German-quality ratio. 5-chamber profile, glossy HDF surface and reliable security hardware.
Energy rating
A
Door Type
Standard 70mm
Profile Depth
70mm
Chambers
5 chambers
Panel Thickness
up to 41mm
Security
RC1 / RC2
Thermal protection
Uw ≤ 1.3 W/(m²·K)
UW- value 1.2
Rehau Brillant-Design 70 Door
Classic reliable 70mm PVC entrance door with high stability and elegant rounded design. Premium HDF surface finish for lasting aesthetic appeal.
Energy rating
A
Door type
Entrance door
Profile depth
70mm
Profile chambers
5 chambers
Panel thickness
up to 42mm
Security
up to RC2
Thermal protection
Uw ≤ 1.2 W/(m²·K)
UW- value 0.90
Rehau Synego 80 Door
Energy-efficient 80mm door (Passivhaus standard). Up to 50% more heat retention, 46 dB sound insulation and RC3 break-in resistance.
Energy rating
A++
Door type
Entrance door
Profile depth
80mm
Profile chambers
7 chambers
Panel thickness
up to 51mm
Security
up to RC2
Thermal protection
Uw ≤ 0.90 W/(m²·K)
Available in Your Region
We work throughout Spain
Leave a Review
Customer Reviews
Find out what people are saying about it
0.0
Average rating
0 reviews
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0
No reviews yet. Be the first!
FAQs
Frequently Asked Questions about Veka Softline 82 Door
Are 3 sealing circuits really needed for a door?
For an entrance door, this is a huge advantage. The third circuit blocks cold air before it reaches the main seal and significantly improves sound insulation from street noise.
Is it suitable for a passive house?
Yes, when using a 52 mm panel or glass unit with krypton, the Ud value (door thermal transmittance) can drop below 0.9 W/m²K, meeting energy-efficient housing standards.
Will the profile withstand frequent opening?
Absolutely. Class A (3 mm wall) provides a "meaty" base for hinge mounting. Hinges do not loosen over time, as happens with thin-walled economy class profiles.
What threshold is used?
We use a combined threshold (aluminum + plastic) with thermal break. It is only 20 mm high, convenient for passage, yet does not freeze thanks to the thermal insert.
Can a door with full-height glass be made?
Yes. Thanks to powerful reinforcement, Veka Softline 82 allows making fully glazed entrance doors. Safe laminated or tempered glass is used as part of a warm unit.
How heavy will the door be?
The door is massive and solid (sash can weigh 80-100 kg), but thanks to quality hinges (e.g., Dr. Hahn or Roto Solid) it opens and closes with a light hand movement.
