UW- value 0.88
WDS 8S — Investment in absolute comfort. This is the most powerful system in our range, designed for building energy-efficient cottages and passive houses (Passivhaus). With 82 mm installation width and 6 chambers, it exceeds the strictest European heat-saving standards.
MD Technology (Triple Seal Systems):
The main distinguishing feature of this system is the third (middle) sealing circuit. It divides the space between frame and sash into two chambers:
- Dry chamber for hardware: Mechanisms are reliably protected from moisture and salty air, critical for Spanish coastal zones. Hardware lasts 2 times longer.
- Impenetrable barrier: The third rubber lip eliminates even micro-drafts and increases sound insulation to record values.
By choosing WDS 8S, you get premium German brand characteristics (Veka 82, Salamander bluEvolution) while saving up to 30% of budget.
Article number
600.120.001
Technical Specifications
Details
Energy-saving elite. 82 mm profile with third sealing circuit for those who accept no compromises.
Energy rating
A++
Profile chambers
6 chambers
Profile depth
82mm
Profile height
115mm
Glass unit
44 mm / 52 mm
Thermal protection
Uw ≤ 0.88 W/(m²·K)
Sound insulation
≈48 Rw(dB)

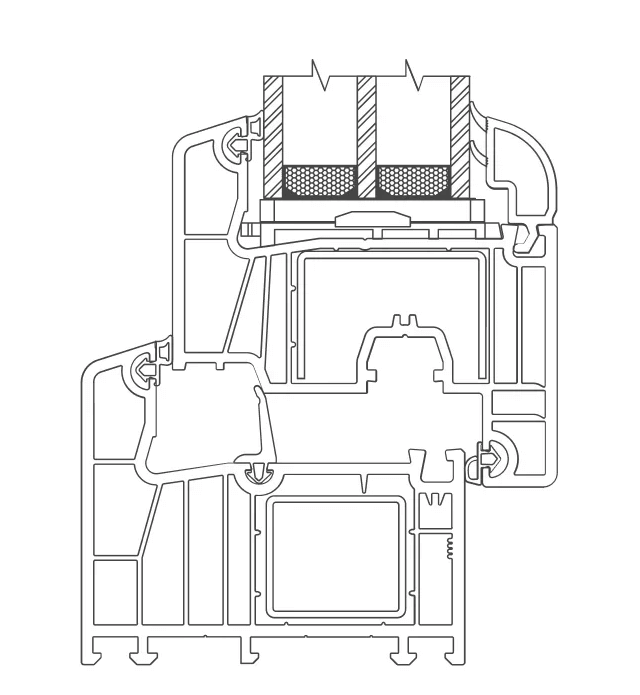

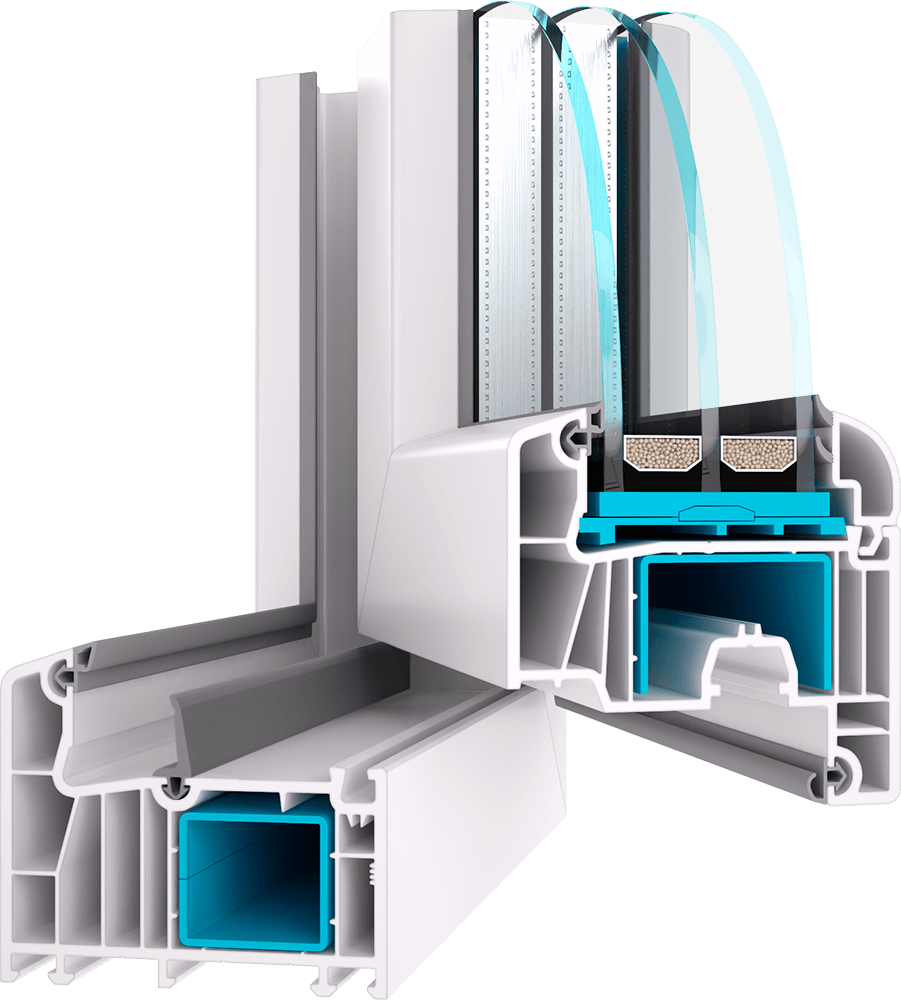

System Design Parameters:
- Installation depth: 82 mm.
- Profile construction: 6 chambers (Frame and Sash).
- Sealing system: 3 circuits (presence of middle sealing significantly improves thermal and sound insulation).
- Outer wall thickness: Class A (according to DSTU) — provides maximum rigidity and weld seam durability.
- Design: Rounded and classic sash shapes, high-gloss surface finish.
Glazing Options:
- Maximum glass unit thickness: up to 44 mm.
- Recommended solution: Double-chamber energy-saving glass unit 44 mm with argon.
Certified Characteristics:
- Thermal resistance coefficient (Ro): 1.07 m²°C/W (one of the highest indicators on the market).
- Profile thermal insulation (Uf): 1.0 W/m²K.
- Air permeability: Class 4.
- Water tightness: Class 9A.
Documentation
WDS 8S Technical Catalog
PDF. 4.8Mb
WDS 8S System Passport
PDF. 0.8Mb
Maximum warmth
Passivhaus Standard
Airtightness
MD System (3 Circuits)
Acoustics
Recording Studio Silence
WDS 8S
Energy-saving elite. 82 mm profile with third sealing circuit for those who accept no compromises.
Calculate Cost
Estimated manufacturing time 3-6 weeks.
Eligible for NextGen Subsidy -80%
Get up to €3,000 back on this window
Available Services
Free measurement and design More details
Delivery to installation site More details
Installation by our specialists More details
Buy by Phone
Call us Monday to Saturday, except holidays, from 8:00 AM to 10:00 PM. Sundays and holidays from 10:00 AM to 8:00 PM. Call

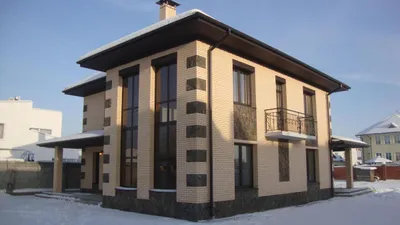

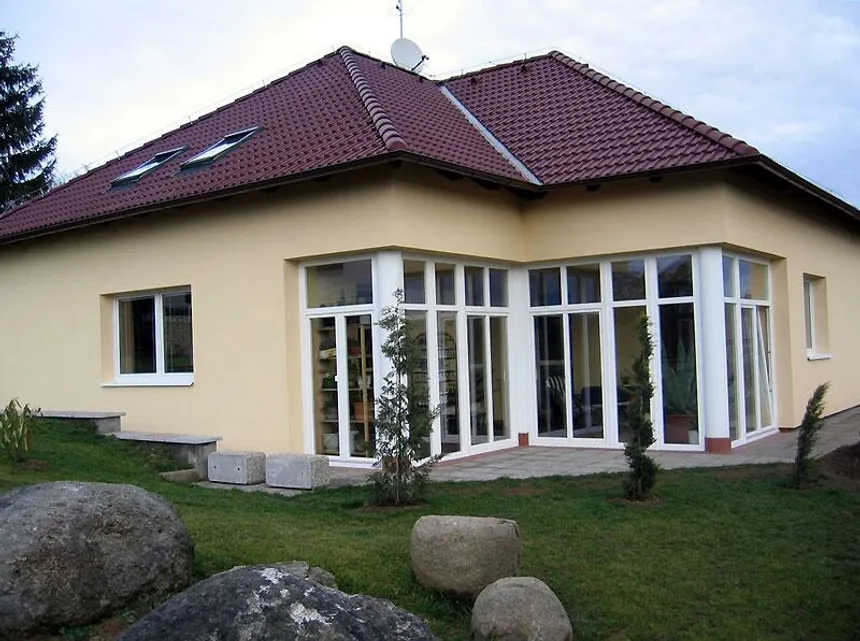

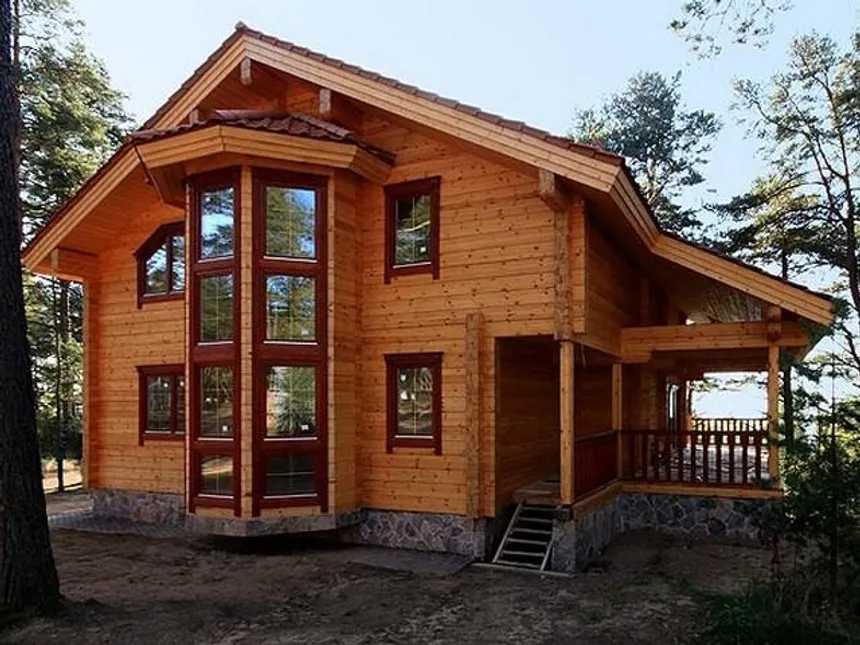

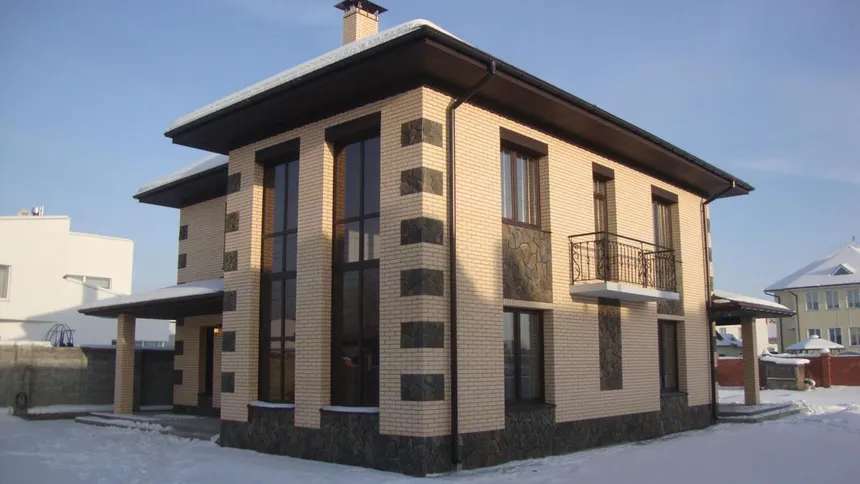

More Ideas and Inspiration

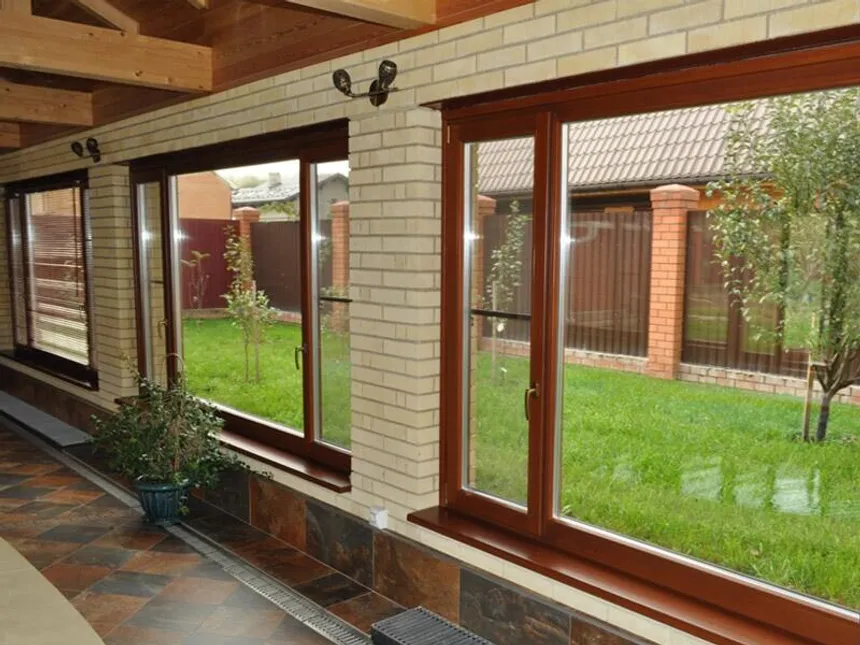

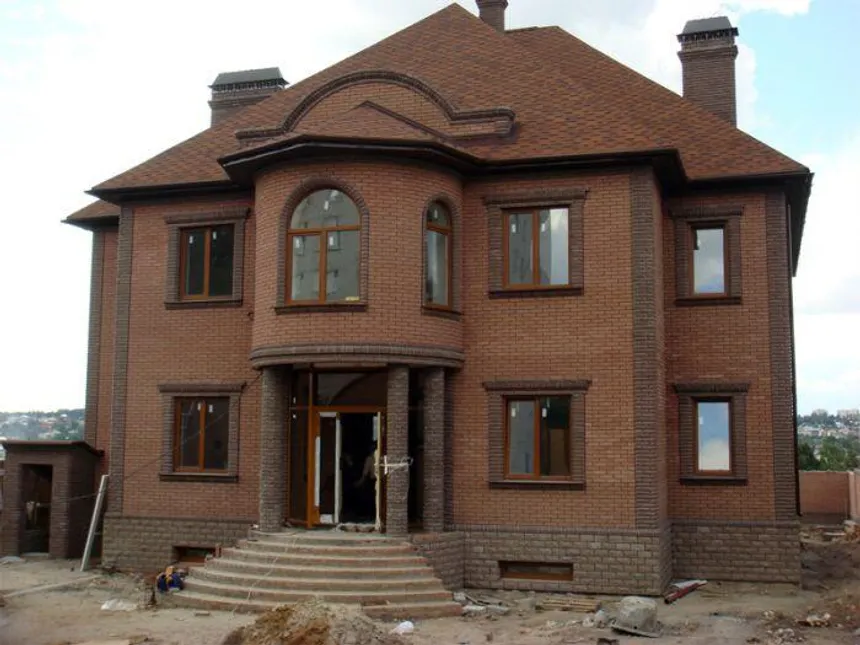

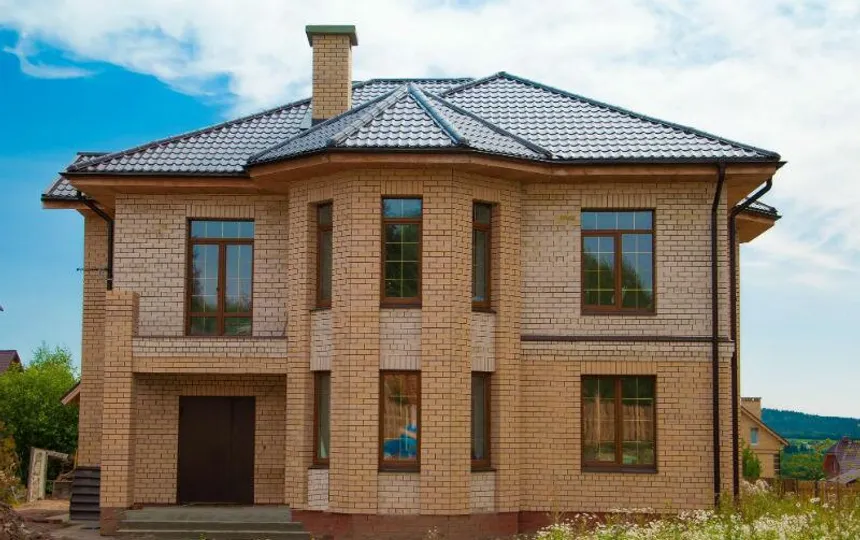

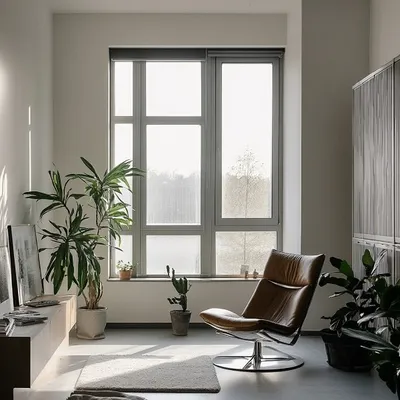

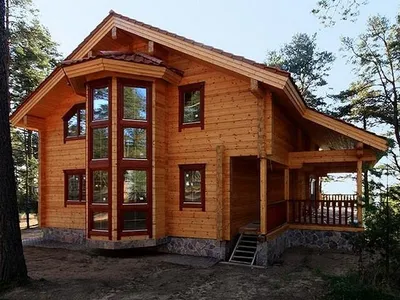

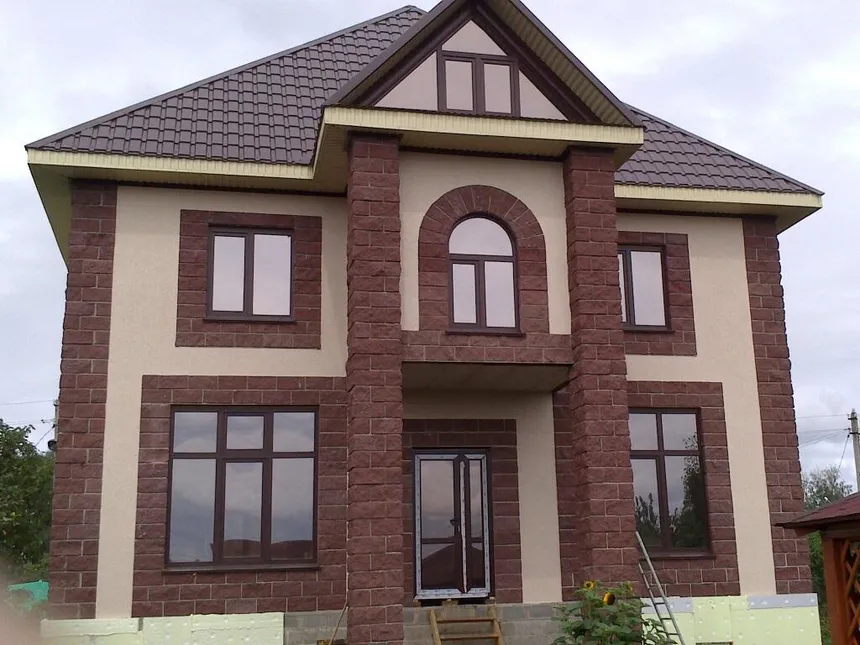

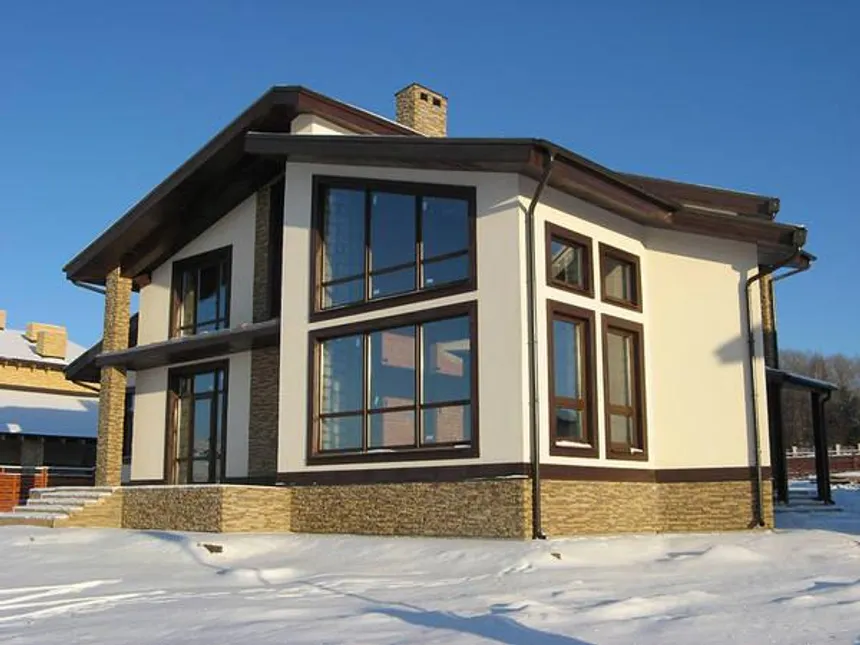

These are some examples of our work with WDS 8S profile. All this inspiration is for you and only for you.
* - Photos provided by our partners and may differ from actual products.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
Financing Options
Enjoy your purchase now and pay for it in installments using our financing services.
More detailsDon't Forget to Add
Additional elements and accessories that will make your home even more comfortable
Mosquito Nets
Protect your home from insects, dust, and pollen, allowing you to enjoy fresh air even in the middle of summer.
Handles and Locking Elements
Quality hardware ensures ease of use and security for your windows and doors.
Lamination
Colorful home facades and the desire to decorate your home leads to growing demand for laminated windows every year.
Decorative Elements
Decorative strips and bars allow you to give your windows an individual style, emphasizing the architectural features of your home.
Compare with Similar Profiles
Alternative solutions from other manufacturers
UW- value 1.4

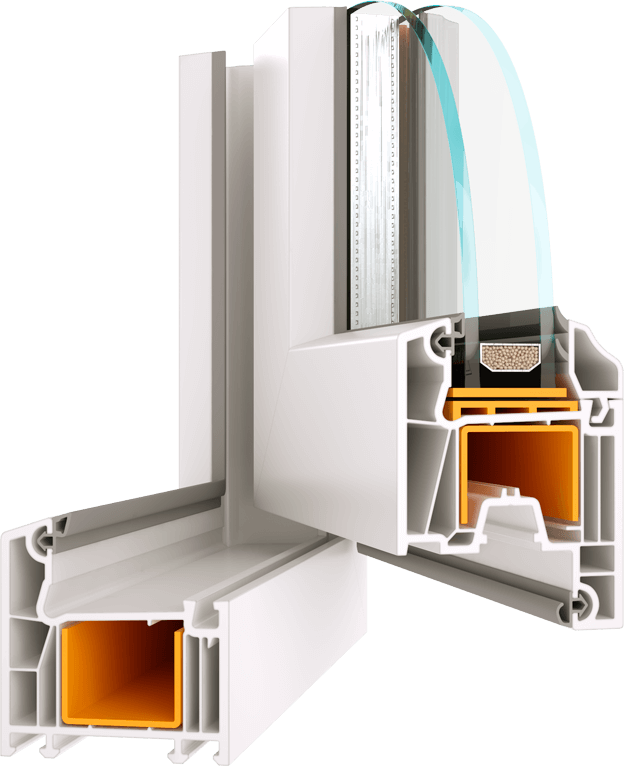

WDS 5S
Best price. 5-chamber 60mm system for glazing cottages, balconies, and utility rooms.
Energy rating
B
Profile chambers
5 chambers
Profile depth
60mm
Profile height
107mm
Glass unit
up to 32mm
Thermal protection
Uw ≤ 1.4 W/(m²·K)
Sound insulation
≈38 Rw(dB)
UW- value 1.3

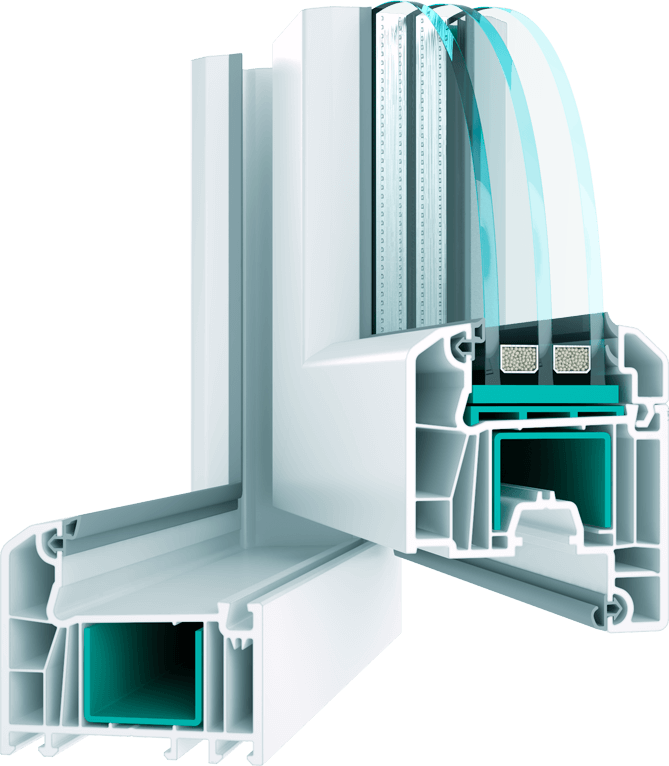

WDS 6S (70 mm)
Gold standard of glazing. 6-chamber 70mm system with improved sound insulation.
Energy rating
A
Profile chambers
6 chambers
Profile depth
70mm
Profile height
113mm
Glass unit
up to 40mm
Thermal protection
Uw ≤ 1.3 W/(m²·K)
Sound insulation
≈40 Rw(dB)
UW- value 1.2

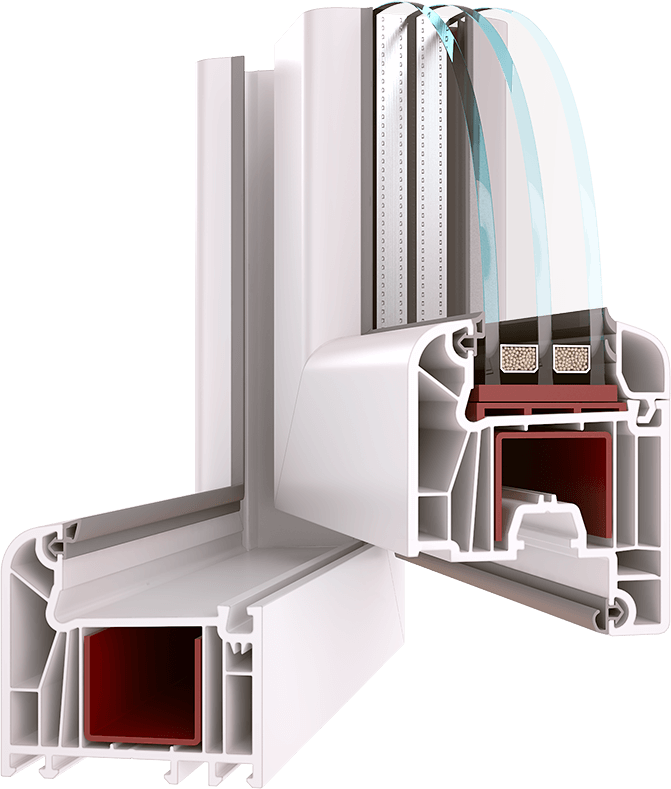

WDS 7S (70 mm)
Aesthetics without compromise. 6-chamber system with Soft Line design for refined interiors.
Energy rating
A
Profile chambers
6 chambers
Profile depth
70mm
Profile height
113mm
Glass unit
up to 40mm
Thermal protection
Uw ≤ 1.2 W/(m²·K)
Sound insulation
≈42 Rw(dB)
UW- value 1.3
Rehau Euro-design 70
Classic 5-chamber system with 70 mm depth, reliable and economical for standard construction. HDF surface.
Energy rating
A
Profile chambers
5 chambers
Profile depth
70mm
Profile height
108mm
Glass unit
up to 40mm
Thermal protection
Uw ≤ 1.3 W/(m²·K)
Sound insulation
≈43 Rw(dB)
UW- value 0.94
Rehau Synego
7-chamber system with 80 mm depth, providing high thermal and sound insulation for comfortable living. HDF.
Energy rating
A++
Profile chambers
7 chambers
Profile depth
80mm
Profile height
117mm
Glass unit
up to 51mm
Thermal protection
Uw ≤ 0.94 W/(m²·K)
Sound insulation
≈46 Rw(dB)
UW- value 1.2
Rehau Brillant-Design 70
Premium 70 mm system with elegant design, smooth HDF surface and good thermal insulation properties. HDF
Energy rating
A
Profile chambers
5 chambers
Profile depth
70mm
Profile height
116mm
Glass unit
up to 42mm
Thermal protection
Uw ≤ 1.2 W/(m²·K)
Sound insulation
≈43 Rw(dB)
Available in Your Region
We work throughout Spain
Leave a Review
Customer Reviews
Find out what people are saying about it
0.0
Average rating
0 reviews
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0
No reviews yet. Be the first!
FAQs
Frequently Asked Questions about WDS 8S
Is WDS 8S worth paying more than 70-series?
If you're building your own private home, have panoramic windows, or an apartment with individual heating meter — yes, it's worth it. Savings on electricity bills will pay off the difference in 3-4 years. Plus, the third sealing circuit provides a completely different comfort level (no drafts).
What is the "third circuit" and why is it needed?
It's a rubber lip in the middle of the frame. Regular windows have two (outside and inside). The third circuit protects metal hardware from water (it doesn't rust) and creates an additional air chamber, improving thermal insulation.
What glass unit is best to install in this profile?
To unlock the 82 mm profile's potential, we recommend installing a double-glazed unit (3 panes) 44 mm thick with low-E coating and argon. Installing a regular "cold" package in such a frame is impractical.
Can this window handle heavy sashes?
Yes, the WDS 8S system is designed for heavy glass units. Thanks to closed reinforcement and strong profile walls, we manufacture large sashes without sagging risk.
Can this window be integrated into a "Smart Home" system?
Yes, the hardware groove allows installation of concealed opening sensors (reed switches) for alarms and climate control, preserving window aesthetics.
How does WDS 8S compare to REHAU Geneo or Schüco Living 82?
WDS 8S has similar installation depth (82 mm), 6 chambers, and third sealing circuit — the same technologies as premium German brands. The main difference is price: WDS costs 35-45% less with comparable thermal insulation (Uf ≤ 1.0 W/m²K) and sound insulation (up to 45 dB) characteristics.
