UW- value 0.9

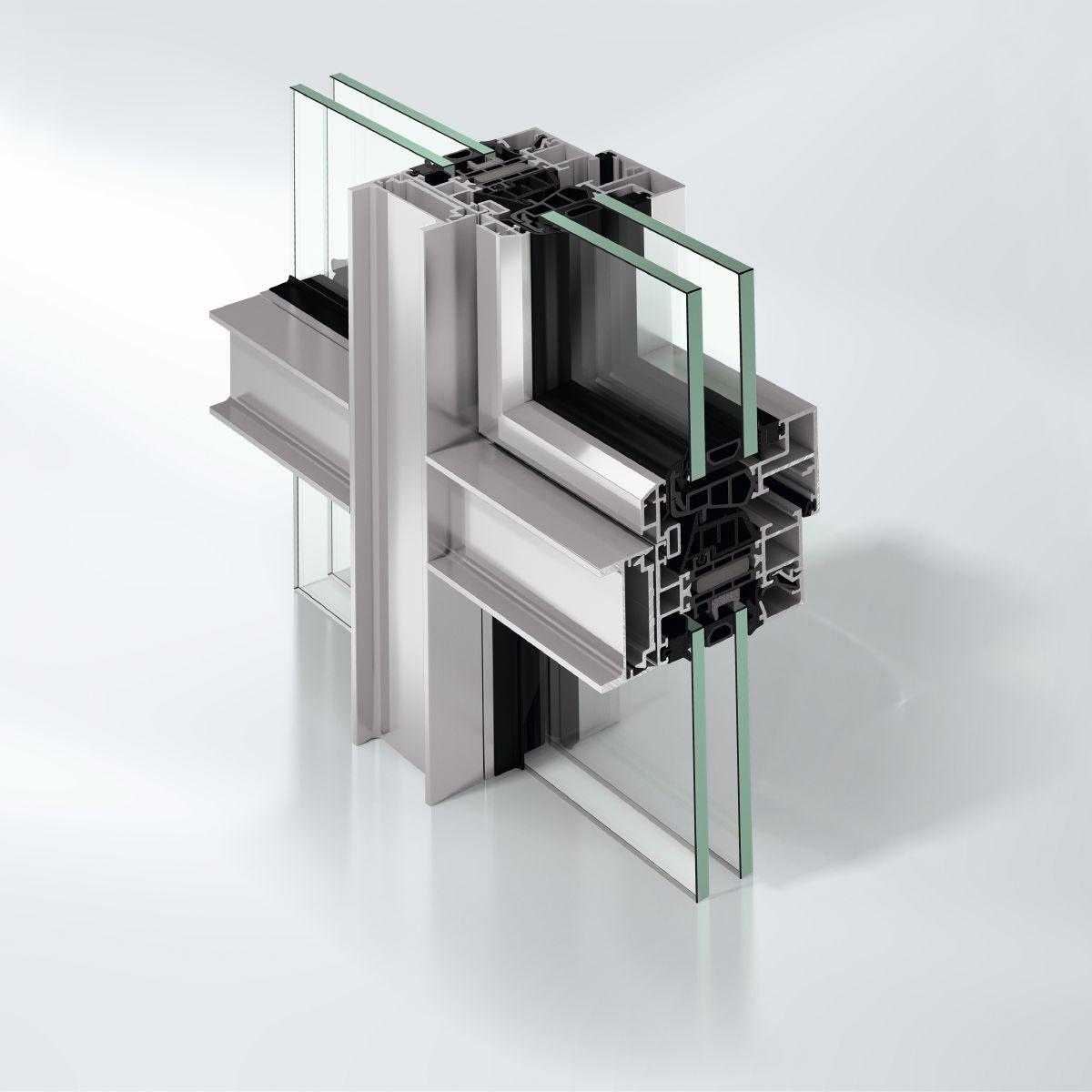

Schüco AWS 75.SI+ (Super Insulation) represents the next level in aluminum window technology. The SI+ designation indicates the use of special foam inserts inside the polyamide thermal bridges, significantly reducing heat loss through the frame.
This system combines the elegance and durability of aluminum with thermal performance approaching that of PVC profiles. It's the perfect choice for energy-efficient homes where aesthetics cannot be compromised.
Article number
500.200.002
Technical Specifications
Details
Super insulation aluminum. Premium 75 mm system with foam-filled thermal bridges for maximum energy efficiency.
Energy Efficiency
A++
Profile Type
Thermal Break + Foam
Profile Depth
75mm
Profile Height
117mm
Glass Unit
up to 61mm
Thermal Protection
Uw ≤ 0.90 W/(m²·K)
Sound Insulation
≈48 Rw(dB)
System structural parameters:
- Installation depth: 75 mm.
- Profile type: Thermally broken aluminum with foam-filled polyamide thermal bridges (SI+ technology).
- Design: Wide range of contours available — from rounded Soft Line (SL) and beveled Residential Line (RL) to block system (BS) with concealed sash.
- Sealing: Triple sealing with optimized central gasket combining porous and solid rubber for improved insulation.
- Hardware: Full compatibility with concealed Schüco AvanTec SimplySmart hardware (up to 250 kg) and mechatronic TipTronic.
Glazing options:
- Infill thickness: up to 61 mm.
- Glass unit types: Any configurations, including heavy triple-glazed, acoustic, and armored units.
Certified characteristics:
- Thermal insulation (Uf): from 0.92 W/m²K (frame).
- Sound insulation (Rw): up to 48 dB.
- Burglar resistance: up to RC3 class.
- Air permeability: Class 4.
- Water tightness: Class 9A.
Documentation
Technical Specifications
PDF. 1.8Mb
Smart Warmth
SI+ Technology
Airtightness
Optimized Gasket
Smart Home
Concealed Mechatronics
Schüco AWS 75.SI+
Super insulation aluminum. Premium 75 mm system with foam-filled thermal bridges for maximum energy efficiency.
Calculate Cost
Estimated manufacturing time 3-6 weeks.
Eligible for NextGen Subsidy -80%
Get up to €3,000 back on this window
Available Services
Free measurement and design More details
Delivery to installation site More details
Installation by our specialists More details
Buy by Phone
Call us Monday to Saturday, except holidays, from 8:00 AM to 10:00 PM. Sundays and holidays from 10:00 AM to 8:00 PM. Call
More Ideas and Inspiration
These are some examples of our work with Schüco AWS 75.SI+ profile. All this inspiration is for you and only for you.
* - Photos provided by our partners and may differ from actual products.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
Financing Options
Enjoy your purchase now and pay for it in installments using our financing services.
More detailsDon't Forget to Add
Additional elements and accessories that will make your home even more comfortable
Mosquito Nets
Protect your home from insects, dust, and pollen, allowing you to enjoy fresh air even in the middle of summer.
Handles and Locking Elements
Quality hardware ensures ease of use and security for your windows and doors.
Lamination
Colorful home facades and the desire to decorate your home leads to growing demand for laminated windows every year.
Decorative Elements
Decorative strips and bars allow you to give your windows an individual style, emphasizing the architectural features of your home.
Compare with Similar Profiles
Alternative solutions from other manufacturers
UW- value 1.4
Schüco AWS 65
Aluminum standard. Universal system with 65 mm installation depth for stylish and durable solutions.
Energy Efficiency
B
Profile Type
Thermal Break
Profile Depth
65mm
Profile Height
104mm
Glass Unit
up to 55mm
Thermal Protection
Uw ≤ 1.4 W/(m²·K)
Sound Insulation
≈47 Rw(dB)
UW- value 0.9
Schüco AWS 75 PD.SI
Panoramic design. Architectural system with minimum visible profile width from 55 mm for maximum light.
Energy Efficiency
A+
Profile Type
Thermal Break + Foam
Profile Depth
75mm
Profile Height
from 55mm
Glass Unit
up to 50mm
Thermal Protection
Uw ≤ 0.90 W/(m²·K)
Sound Insulation
≈46 Rw(dB)
UW- value 0.8
Schüco AWS 90.SI+
Absolute maximum. Passive House certified aluminum system with 90 mm installation depth.
Energy Efficiency
A+++
Profile Type
Thermal Break + Foam
Profile Depth
90mm
Profile Height
117mm
Glass Unit
up to 68mm
Thermal Protection
Uw ≤ 0.80 W/(m²·K)
Sound Insulation
≈47 Rw(dB)
UW- value ≤ 1.3
Cortizo COR 60
Modern thermally broken aluminium. A versatile 60 mm depth system combining the elegance of metal profiles with high strength and excellent thermal insulation.
Energy Efficiency
B / A
Material
Aluminium RPT
Profile Depth
60 mm
Insulation
Thermal Break 24 mm
Glazing
up to 48 mm
Thermal Protection (Uw)
≤ 1.3 W/(m2K)
Sound Insulation
≈ 44 Rw(dB)
UW- value ≤ 1.0
Cortizo COR 70 Industrial
A bestseller in modern architecture. Aluminium system with 70 mm depth and enhanced thermal break, designed for those seeking maximum light transmission and the aesthetics of strict minimalism.
Energy Efficiency
A / A+
Material
Aluminium RPT
Profile Depth
70 mm
Insulation
Thermal Bridge 35 mm
Glazing Unit
up to 55 mm
Thermal Protection (Uw)
≤ 1.0 W/(m²·K)
Sound Insulation
≈ 44 Rw(dB)
UW- value ≤ 1.0
Cortizo COR 70 Hoja Oculta
The aesthetics of invisibility. An innovative aluminium system with a "concealed sash": only the frame is visible from outside, making operable and fixed sections indistinguishable and increasing the glazing area.
Energy efficiency
A / A+
Material
Aluminium (Concealed)
Profile depth
70 mm
Insulation
35 mm thermal break
Glazing unit
up to 40 mm
Thermal protection (Uw)
≤ 1.0 W/(m²·K)
Sound insulation
≈ 44 Rw(dB)
Leave a Review
Customer Reviews
Find out what people are saying about it
0.0
Average rating
0 reviews
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0
No reviews yet. Be the first!
FAQs
Frequently Asked Questions about Schüco AWS 75.SI+
Is this aluminum really warm?
Yes, the profile Uf reaches 0.92 W/m²K. Combined with a warm glass unit (window Uw ≈ 0.9-1.0), this system meets modern energy-saving standards for residential cottages in temperate climates.
How does AWS 75.SI+ differ from standard AWS 75?
The SI+ version has additional foam insulating inserts and an improved gasket. The aluminum geometry is the same, but the thermal performance of the SI+ version is significantly higher.
How large can sashes be made?
Sashes can be made up to 2500 mm high and 1700 mm wide (depending on glass weight). Maximum sash weight is up to 250 kg (with reinforced hardware), allowing panoramic opening walls.
What opening options are available?
Tilt-and-turn, turn-only, tilt-only (top-hung), French doors (without central mullion), as well as PASK portal doors (parallel-sliding).
Can it be painted in two colors?
Yes, this is a standard option for "warm" aluminum. You can order different profile colors for outside (matching the facade) and inside (matching the interior).
How to maintain aluminum windows?
Aluminum requires virtually no maintenance. Simply wash the profile with soapy water twice a year and lubricate the hardware with oil. Powder coating doesn't need renewal for the entire service life (50+ years).
