UW- value 1.1
Schüco LivIngSlide is the perfect continuation of the LivIng line in the format of large sliding doors. Engineers successfully transferred the main advantage of the window system — weldable EPDM gaskets — into the sliding design. This ensures Hi-End class airtightness unattainable with conventional PVC portals.
Sashes weighing up to 400 kg glide almost silently and can be operated with one hand. This is the best solution for terrace access in a country house where maximum thermal insulation and draft protection during winter are essential.
Article number
500.320.001
Technical Specifications
Details
A new dimension of comfort. Premium lift-and-slide PVC system based on Schüco LivIng 82 technology with weldable EPDM gaskets for superior airtightness.
Energy Efficiency
A++
System Type
Lift-and-slide (HS)
Material
PVC (Schüco LivIng)
Frame Depth
194mm
Max. Glazing
up to 52mm
Thermal Protection (Uw)
≤ 0.80 W/(m²·K)
Sound Insulation
≈ 45 dB

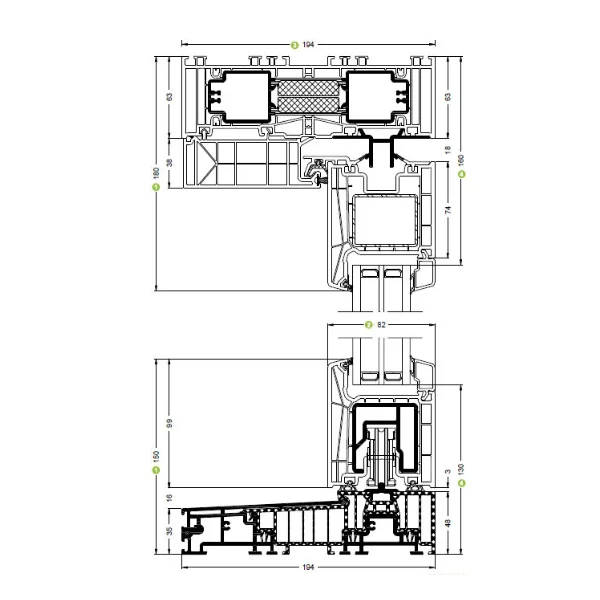

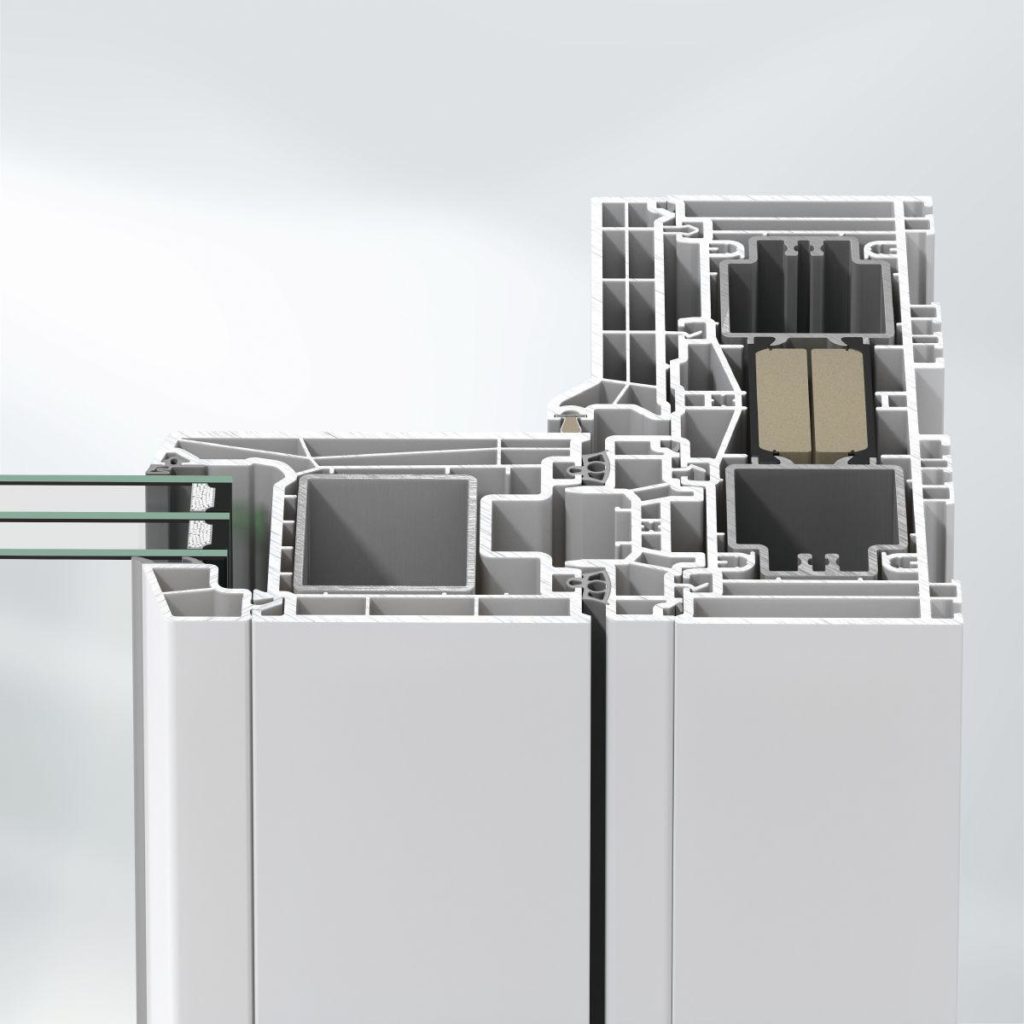

System structural parameters:
- Frame installation depth: 194 mm.
- Sash installation depth: 82 mm (Schüco LivIng system platform).
- Material: High-quality PVC with lamination options or decorative cladding.
- Sealing: Weldable EPDM gaskets in the frame and sash ensure flexibility even at -40°C and airtightness around the entire perimeter, including corners.
- Reinforcement: Closed steel profile in the frame and special reinforcements in the sash for stability of large-size structures.
Glazing options:
- Maximum infill thickness: up to 52 mm.
- Glass unit types: Energy-efficient double-chamber units with warm edge spacer.
Certified characteristics:
- Thermal insulation (Uf): 1.3 W/m²K (frame).
- System thermal insulation (Uw): down to 0.80 W/m²K (with appropriate glazing).
- Burglar resistance: up to RC2 class.
- Sound insulation: up to 45 dB.
No Drafts
EPDM Airtightness
Warm in Winter
Energy Balance
Light & Color
Design Freedom
Schüco LivIngSlide
A new dimension of comfort. Premium lift-and-slide PVC system based on Schüco LivIng 82 technology with weldable EPDM gaskets for superior airtightness.
Calculate Cost
Estimated manufacturing time 3-6 weeks.
Eligible for NextGen Subsidy -80%
Get up to €3,000 back on this window
Available Services
Free measurement and design More details
Delivery to installation site More details
Installation by our specialists More details
Buy by Phone
Call us Monday to Saturday, except holidays, from 8:00 AM to 10:00 PM. Sundays and holidays from 10:00 AM to 8:00 PM. Call
More Ideas and Inspiration

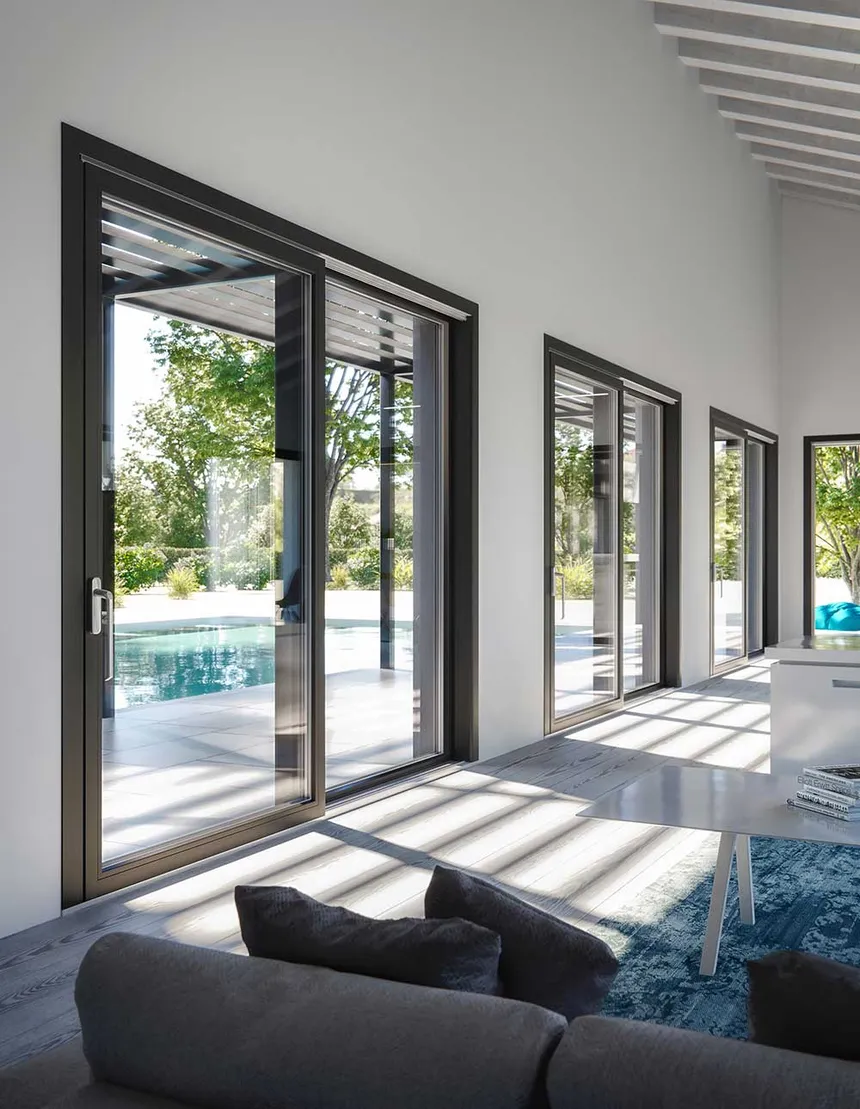

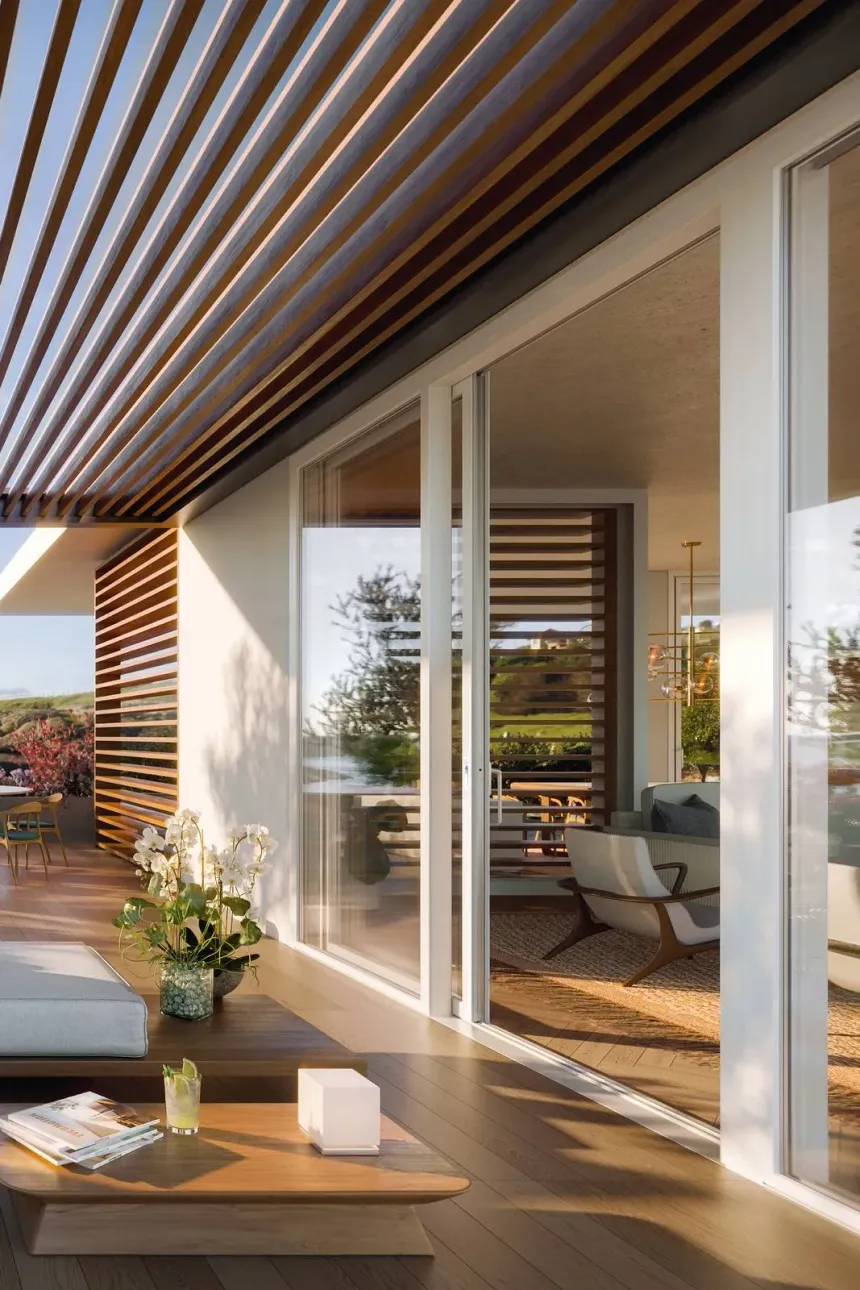

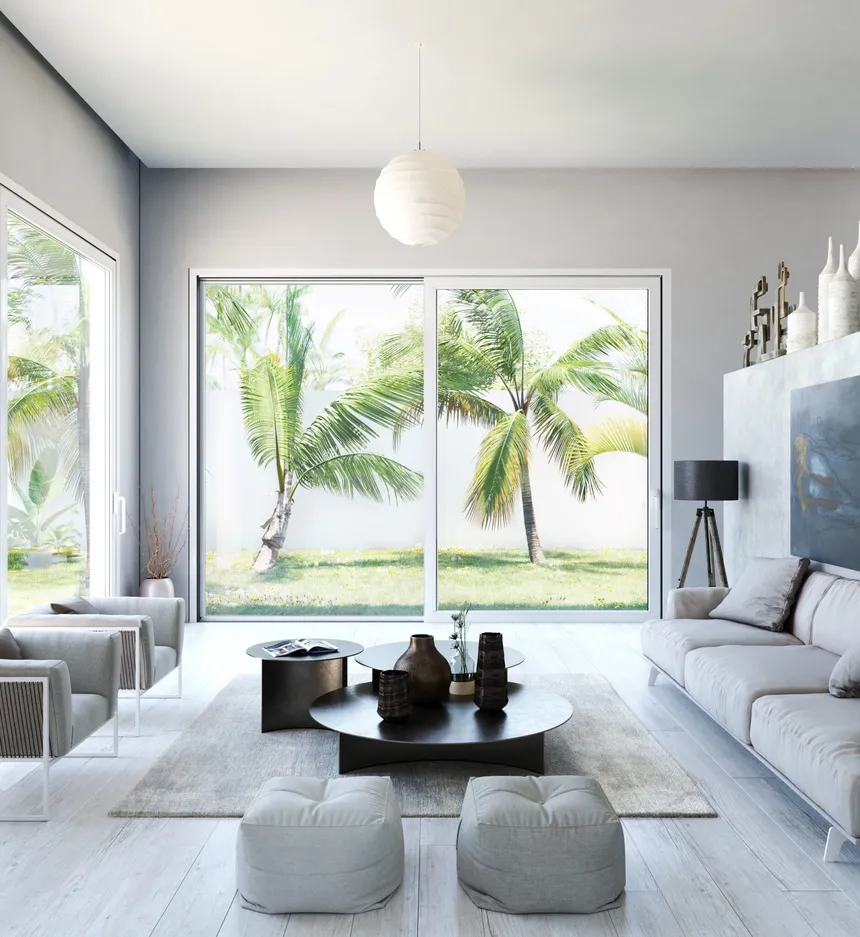

These are some examples of our work with Schüco LivIngSlide profile. All this inspiration is for you and only for you.
* - Photos provided by our partners and may differ from actual products.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
We are working on keeping data up-to-date. Contact us if you need fresh materials.
Financing Options
Enjoy your purchase now and pay for it in installments using our financing services.
More detailsDon't Forget to Add
Additional elements and accessories that will make your home even more comfortable
Mosquito Nets
Protect your home from insects, dust, and pollen, allowing you to enjoy fresh air even in the middle of summer.
Handles and Locking Elements
Quality hardware ensures ease of use and security for your windows and doors.
Lamination
Colorful home facades and the desire to decorate your home leads to growing demand for laminated windows every year.
Decorative Elements
Decorative strips and bars allow you to give your windows an individual style, emphasizing the architectural features of your home.
Compare with Similar Profiles
Alternative solutions from other manufacturers
UW- value 1.5
Rehau High-Design Slide
Elegant sliding system for balconies, loggias and terraces. Space-saving PVC profiles with smooth gliding operation and warmer than aluminum.
Energy rating
B
System type
Sliding
Track options
2/3/4 tracks
Sealing
Brush seals
Glass unit
up to 24mm
Surface
HDF finish
Thermal protection
Uw ≤ 1.5 W/(m²·K)
UW- value 1.0
Rehau Synego Slide
Sealed sliding system with press-to-close mechanism. Silence and ease in one motion.
Energy rating
A+
System type
Sealed sliding
Profile depth
80mm
Profile chambers
7 chambers
Glass unit
up to 51mm
Max panel weight
200kg
Thermal protection
Uw ≤ 1.0 W/(m²·K)
UW- value 1.3
Rehau Panorama Swing
A unique system where panels slide and pivot, fully opening the aperture.
Energy rating
A
System type
Slide-and-turn
Panel movement
Independent
Opening
Up to 100%
Panels
3-7 panels
Glass unit
up to 40mm
Thermal protection
Uw ≤ 1.3 W/(m²·K)
Available in Your Region
We work throughout Spain
Leave a Review
Customer Reviews
Find out what people are saying about it
0.0
Average rating
0 reviews
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0
No reviews yet. Be the first!
FAQs
Frequently Asked Questions about Schüco LivIngSlide
What is a lift-and-slide system?
When the handle is turned, the sash slightly rises on rollers and glides easily along the track. When closing, it lowers, pressing firmly against the gaskets under its own weight, ensuring airtightness.
How much warmer is this solution compared to aluminum?
PVC itself has low thermal conductivity. Combined with a multi-chamber profile and warm threshold, LivIngSlide often outperforms aluminum alternatives in the same price range in heat retention (Uw down to 0.8).
What size can the door be?
The maximum width of the entire structure can reach 6.5 meters, and the height — 2.8 meters. The weight of a single sash can be up to 400 kg.
Is it difficult to open a heavy sash?
No, thanks to high-quality hardware and ball-bearing rollers, even a child can move a 300 kg sash. Optionally, soft-close mechanisms or electric drives can be installed.
What kind of threshold does this system have?
The threshold features a thermal break for protection against freezing. It can be installed with minimal protrusion above the floor, providing convenient barrier-free passage.
Is a glass wall safe?
Yes, tempered glass or laminated safety glass is used. The system itself is equipped with anti-burglary hardware and special glazing beads, providing protection up to RC2 class.
